High voltage insulation mat data sheet:
| Thickness | Weight | Length | Class | AC Voltage |
|---|---|---|---|---|
| 3mm | 4.5KGS/M² | 10m/roll 20m/roll or as your request | 0 | 1KV |
| 4mm | 6KGS/M² | 10m/roll 20m/roll or as your request | ||
| 5mm | 7.5KGS/M² | 10m/roll 20m/roll or as your request | ||
| 6mm | 9KGS/M² | 10m/roll 20m/roll or as your request | ||
| 3mm | 4.5KGS/M² | 10m/roll 20m/roll or as your request | 1 | 7.5KV |
| 4mm | 6KGS/M² | 10m/roll 20m/roll or as your request | ||
| 5mm | 7.5KGS/M² | 10m/roll 20m/roll or as your request | ||
| 6mm | 9KGS/M² | 10m/roll 20m/roll or as your request | ||
| 7mm | 10.5KGS/M² | 10m/roll 20m/roll or as your request | 2 | 17KV |
| 8mm | 12KGS/M² | 10m/roll 20m/roll or as your request | ||
| 9mm | 13.5KGS/M² | 10m/roll 20m/roll or as your request | 3 | 26.5KV |
| 10mm | 15KGS/M² | 10m/roll 20m/roll or as your request | ||
| 11mm | 16.5KGS/M² | 10m/roll 20m/roll or as your request | ||
| 12mm | 18KGS/M² | 10m/roll 20m/roll or as your request | 4 | 26.5KV |
| 13mm | 19.5KGS/M² | 10m/roll 20m/roll or as your request | ||
| 14mm | 21KGS/M² | 10m/roll 20m/roll or as your request |

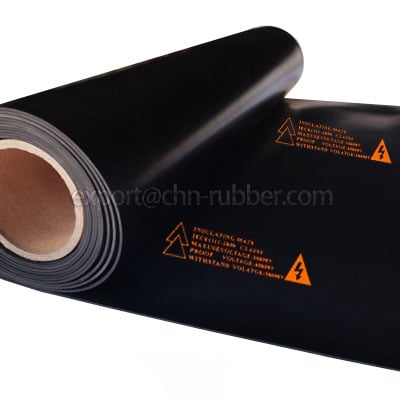

High voltage insulation mat description:
High voltage insulation mat is a specialized type of mat that is specifically designed to provide protection against electrical hazards. These mats are typically made from durable materials such as rubber or vinyl, which have excellent insulating properties. They are commonly used in various industrial and commercial settings where electrical equipment is present, such as power stations, substations, control rooms, and electrical laboratories.
The primary purpose of a high voltage insulation mat is to create a barrier between the electrical equipment and the workers or users who come into contact with it. These mats help to prevent electrical shocks by effectively isolating the equipment from any potential ground. They are especially important in environments where there is a high risk of electric shock, as they help to minimize the chances of accidents and injuries.
In addition to their insulating properties, high voltage insulation mats also offer other benefits. They are designed to be non-slip, providing excellent grip and stability for those working with electrical equipment. This can be particularly crucial in areas where there may be spills or moisture present, as a slip or fall could lead to serious consequences when dealing with high voltage.
Furthermore, high voltage insulation mats are highly durable and resistant to wear and tear. They are specifically made to withstand the harsh conditions often found in industrial settings, such as exposure to chemicals, oils, and extreme temperatures. This ensures that the mats remain effective and reliable over an extended period, offering long-lasting protection to the workers and the electrical equipment.
Overall, high voltage insulation mats are an essential safety measure in environments where electrical hazards are a concern. By providing insulation, stability, and durability, these mats significantly contribute to creating a safe working environment, minimizing the risks associated with high voltage electricity.
