ESD static mat performance parameters
| PHYSICAL PROPERTY | VALUES |
|---|---|
| Material | SBR NBR + special material |
| Thickness | 2mm-50mm |
| Gravity | 1.5g/cm3 |
| Hardness | 60±5Shore A |
| Elongation | surfece 600% |
| Surface tensile strength | 10Mpa |
| Underlayer tensile strength | 3Mpa |

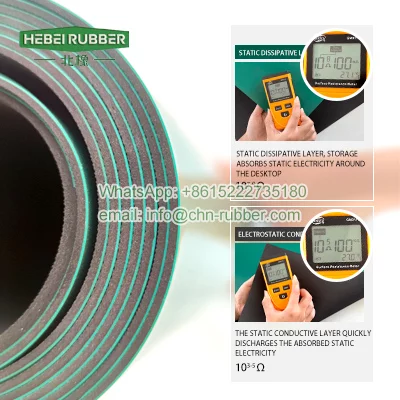

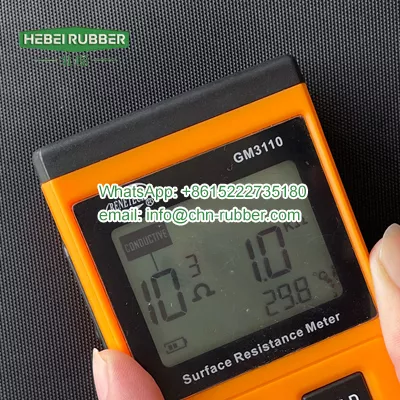

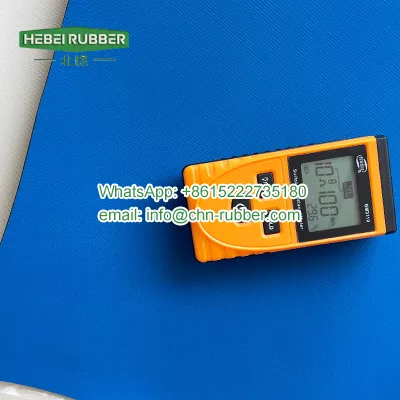

| Surface resistivity | 10^6 ~ 10^9 |
| Underlayer resistance | 10^3 ~ 10^5 |
Electrostatic discharge (ESD) mats are a must-have for environments where static electricity poses a risk to sensitive electronic components. These esd static mats are engineered to create a grounded surface that safely dissipates static, reducing the potential for costly damage and downtime.
Key Features:
- Effective Static Dissipation: Anti electrostatic mat designed with conductive layers, these esd static mat direct static charges away from workstations, protecting delicate electronics and preventing accidental discharges.
- Robust Materials: Built to last, these mats resist wear and tear from daily use, ensuring reliable performance in busy workspaces.

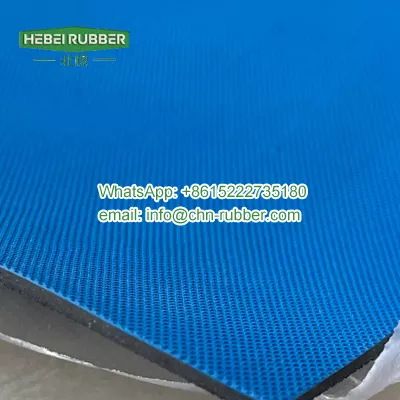

- Anti-Slip Surface: The slightly textured surface provides a secure grip for tools and components, keeping them in place during intricate tasks.
- Versatile Sizing: Available in various dimensions, the mats can be customized to fit benches, floors, or other work areas requiring static control.
- Heat and Chemical Resistant: Anti electrostatic mat suitable for soldering and environments with mild exposure to chemicals, adding versatility to their application.
Applications:
- Manufacturing and Assembly: Protect circuit boards and other static-sensitive devices during production.
Repair and Testing: Create a safe area for troubleshooting and handling electronic parts. - ESD-Safe Zones: Ideal for maintaining compliance in regulated environments, such as labs or cleanrooms.
